Products Description

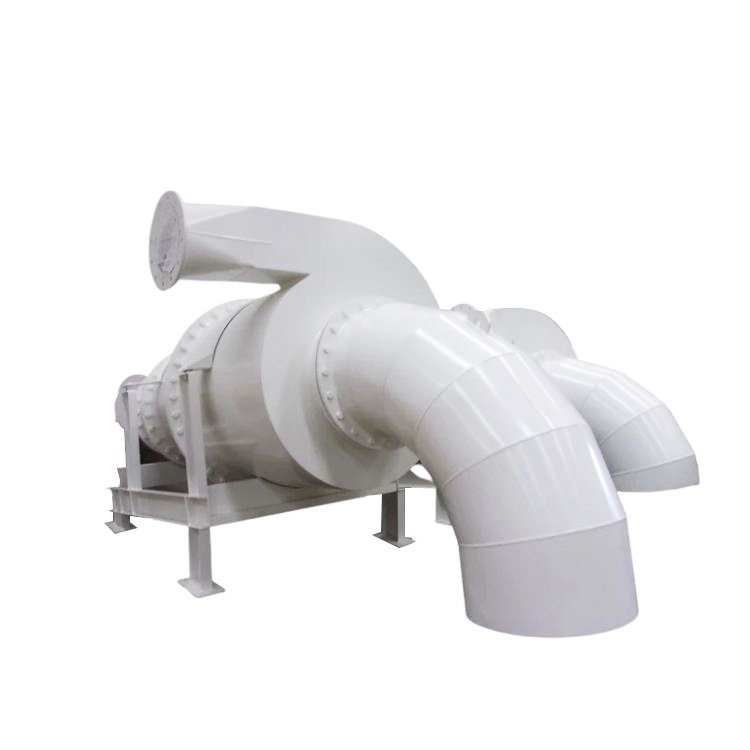

TSX Screen’s Desliming Cyclone is used in graded concentration process. It has simple structure, easy installation and operation, high graded efficiency and large processing capacity.
Specification
|
Specification
|
Feeder Size (mm)
|
Feed Pressure(MPa)
|
Capacity (t/h)
|
Medium Circulation m³/h
|
|
AFX350
|
0.15-0.25
|
0.04-0.15
|
70-150
|
–
|
|
AFX380
|
0.15-0.30
|
0.04-0.15
|
80-170
|
–
|
|
AFX450
|
0.25-0.35
|
0.04-0.15
|
110-230
|
–
|
|
AFX500
|
0.25-0.50
|
0.04-0.15
|
200-300
|
–
|
|
AZX1500
|
≤135
|
0.10-0.20
|
140-300
|
1850-2250
|
|
AZX1450
|
≤120
|
0.10-0.20
|
100-220
|
1600-1850
|
|
AZX1300
|
≤115
|
0.10-0.20
|
70-160
|
1380-1600
|
|
AZX1150
|
≤105
|
0.10-0.18
|
45-100
|
1150-1300
|
|
AZX1000
|
≤100
|
0.10-0.15
|
40-100
|
1050-1150
|
|
AZX900
|
≤95
|
0.09-0.14
|
25-60
|
785-1050
|
|
AZX800
|
≤70
|
0.08-0.13
|
14-40
|
430-700
|
|
AZX710
|
≤65
|
0.08-0.12
|
8-25
|
360-430
|
|
AZX675
|
≤50
|
0.07-0.10
|
6-25
|
210-360
|
Tags:
Technical parameter

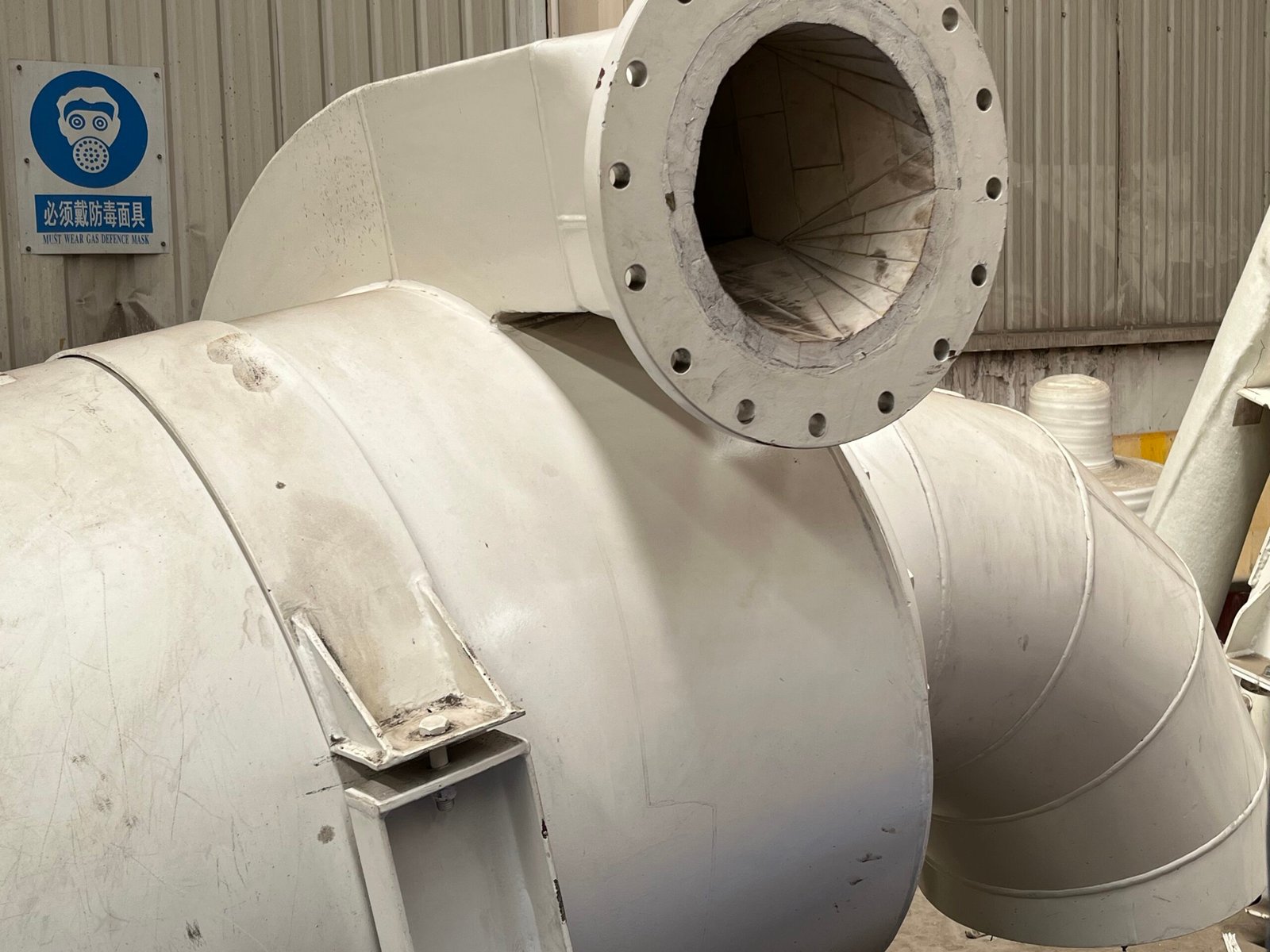

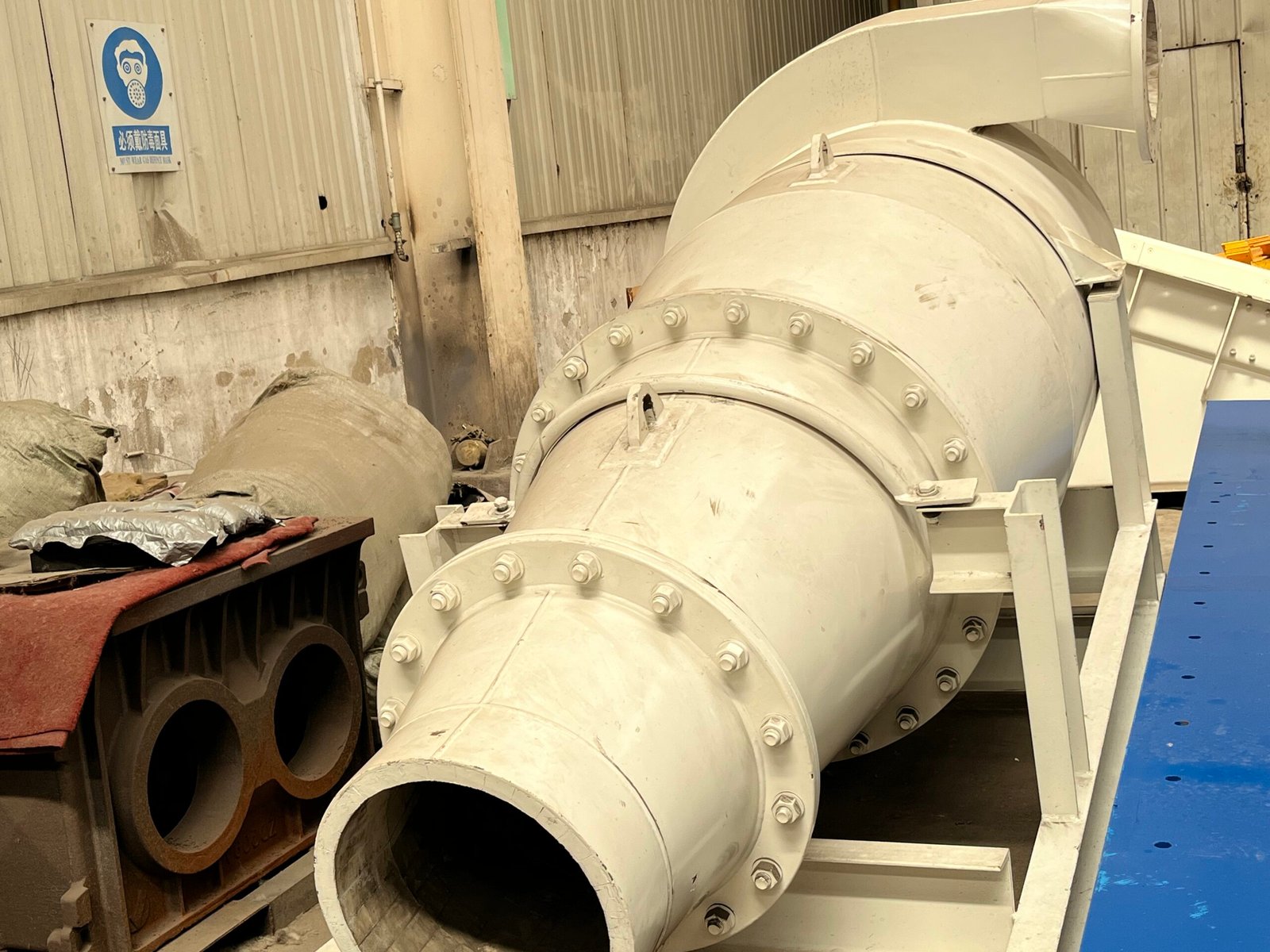

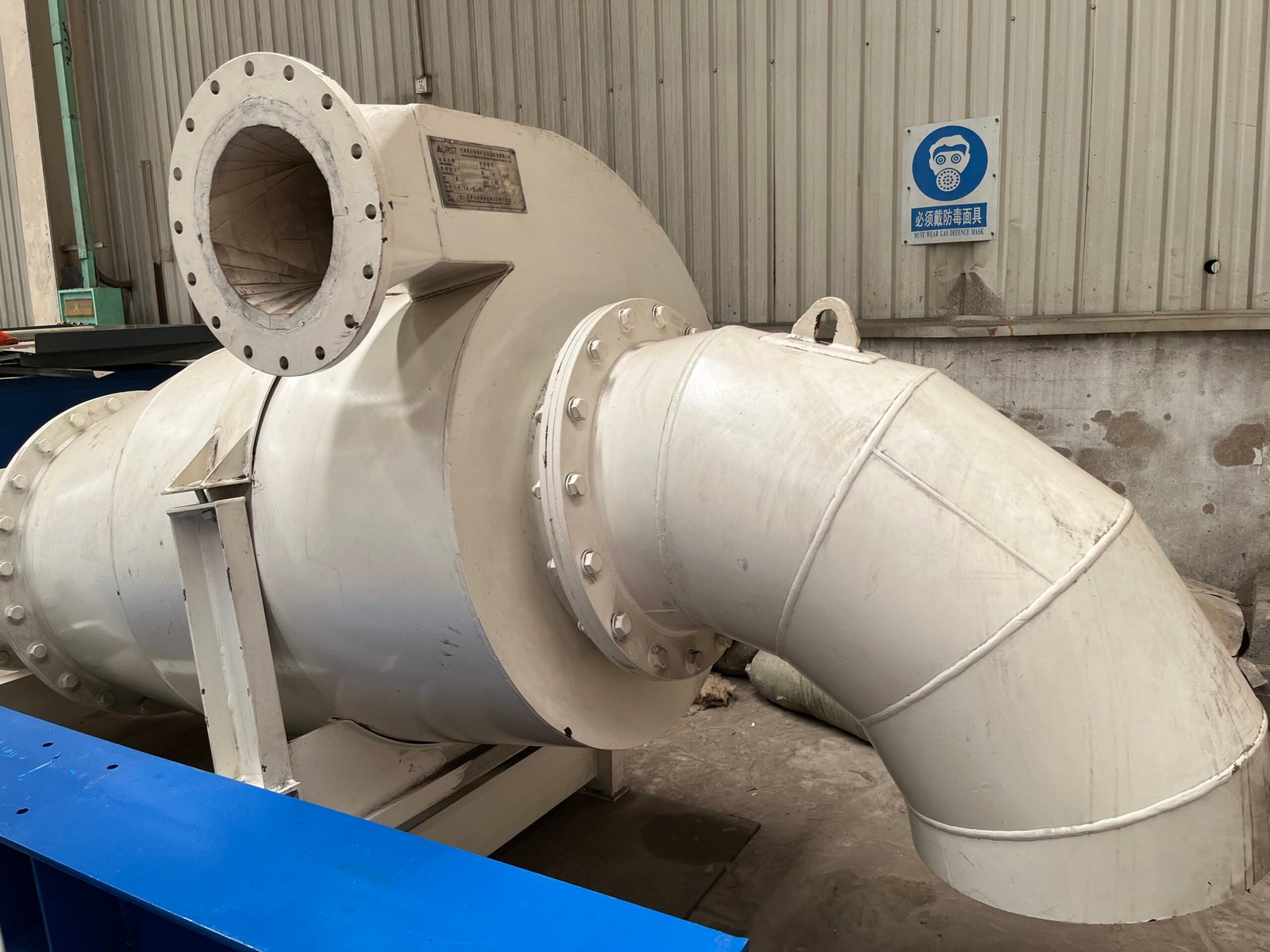

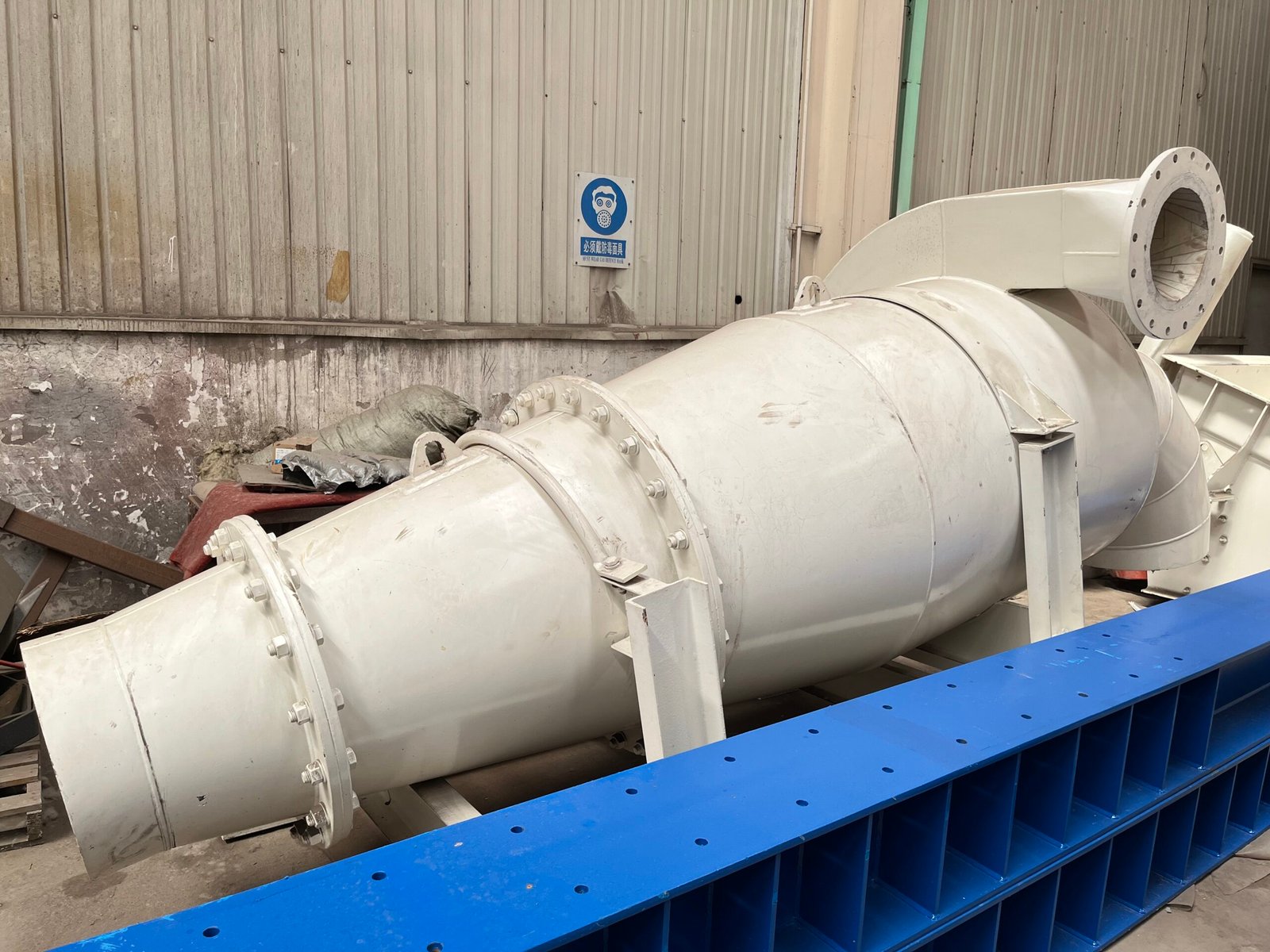

The Desliming Cyclone Details
The Desliming Cyclone Details
The Desliming Cyclone Details
The Desliming Cyclone Details
TSX Screen’s Desliming Cyclone wear resistant alumina ceramic lined steel pipes are available in a range of sizes and configurations suited to virtually any materials handling application.
All wear resistant alumina ceramic tiles are firmly applied to the steel pipe inner walls by either bonding, welding, arch assembly or as required means. High strength, wear and corrosive resistant.
